| Additional Information | : | 110 to 125 psi Air Pressure, 1/4 in NPT Air Inlet |
| Base Plate Depth | : | 7-1/8 in |
| Base Plate Width | : | 9-5/8 in |
| Body Material | : | Steel |
| Lifting Capacity | : | 30 ton |
| Maximum Lift Height | : | 20 in |
| Operation Type | : | Hydraulic |
| Saddle Width | : | 1-3/4 in |
| Series | : | Pro Series |
The ESCO PRO SERIES AIR HYDRAULIC LIFTING EQUIPMENT is designed with the heavy-duty tire service market in mind. With lifting capacities from 12 Ton and up to 30 Tons, there is a jack that will fit any service technician's needs. Each jack is designed uniquely for specific applications including: Commercial Truck, Bus, Tractor & Farm Equipment, and much more.

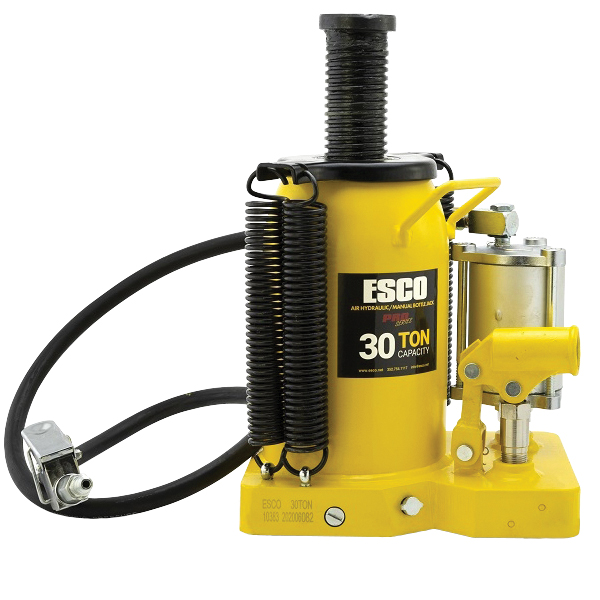

ESCO Bottle Jack, Pro Series, Hydraulic Operation, 30 ton Lifting, 20 in Maximum Lift Height, 1-3/4 in Saddle Width, 9-5/8 in Base Plate Width, 7-1/8 in Base Plate Depth, Steel Body, Additional Information: 110 to 125 psi Air Pressure, 1/4 in NPT Air Inlet
- Fully welded cylinder and frame provide superior strength and extended service life.
- Extra thick jack base provides exceptional support and stability in severe conditions.
- The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more.
- Chrome-plated piston for extra rust and corrosion resistance.
- Fitted with a safety valve to prevent overloading.
- Double spring design for controlled and safe descent while releasing pressure from the cylinder.
- Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights.

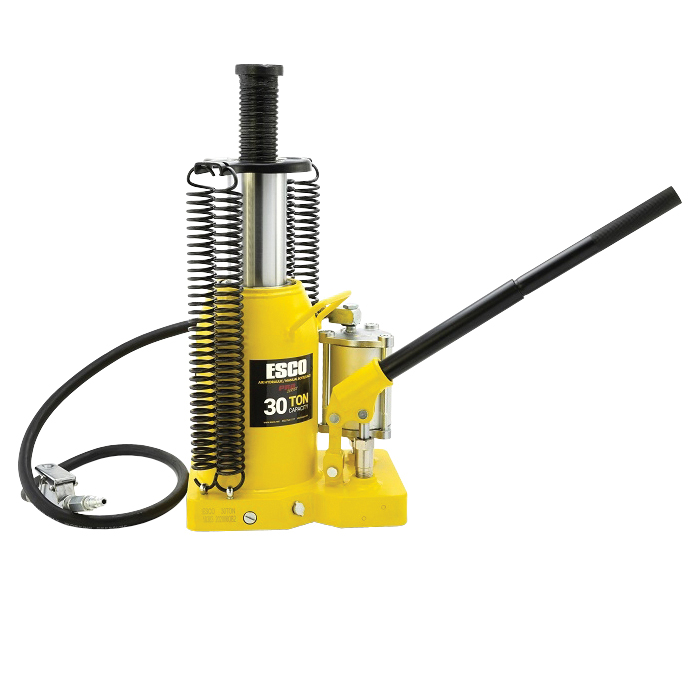

- Design to be operated using air or manually with included two-piece lifting/lowering handle.
- Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load.
- Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application.
