| Accuracy | : | +/-1 deg F |
| Color | : | Premier White® |
| Cover Type | : | Round |
| Current Rating | : | 0.02 to 1.5 Amp Running/6 Amp Inrush (Cooling), 3.5 Amp Inrush (Heating), 0.02 to 0.5 Amp Running/2.5 Amp Inrush (Fan) |
| Cycles per Hour | : | 1, 3, 6, 9 |
| Dimensions | : | 3-11/16 in Dia x 1-7/16 in H |
| Display Type | : | Backlit |
| Frequency Rating | : | 60 Hz |
| Humidity Rating | : | 5 to 90% RH Non-Condensing |
| Sensing Element | : | Thermistor |
| Series | : | Digital Round® Series |
| Size | : | 3-11/16 Inch Diameter x 1-7/16 Inch Depth |
| Specifications | : | Cover Type: Round|Color: Premier White|Switch Type: Electronic |
| Stages | : | 1 Heat/1 Cool |
| Switch Position | : | AUTO-ON, HEAT-OFF-COOL |
| Switch Type | : | Electronic |
| Temperature Rating | : | 40 to 90 deg F |
| Type | : | Digital, Non-Programmable, 1-Heat/1-Cool Pump/Conventional, Manual Changeover |
| Voltage Rating | : | 18-30 V |
The Digital Round® Thermostats provide 24V control of heating only or heat/cool systems.

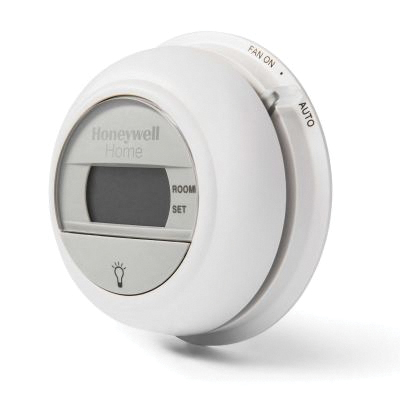

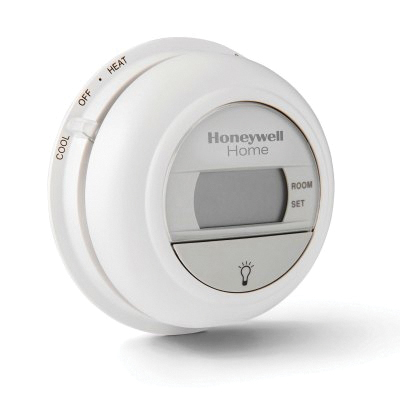

Honeywell Home Non-Programmable Thermostat, Digital Round® Series, 18-30 V, 60 Hz, 1 Heat/1 Cool Stages, AUTO-ON, HEAT-OFF-COOL Switch Position, Electronic Switch, Thermistor Sensing Element, Backlit Display, 40 to 90 deg F, 5 to 90% RH Non-Condensing Humidity Rating, Cycles per Hour: 1, 3, 6, 9, +/-1 deg F Accuracy, 3-11/16 in Dia x 1-7/16 in H, Premier White®
- Attractive styling complements any decor.
- One-touch backlit display.
- Familiar twist-to-see operation. Available in Heat/Cool and Heat Only models.
